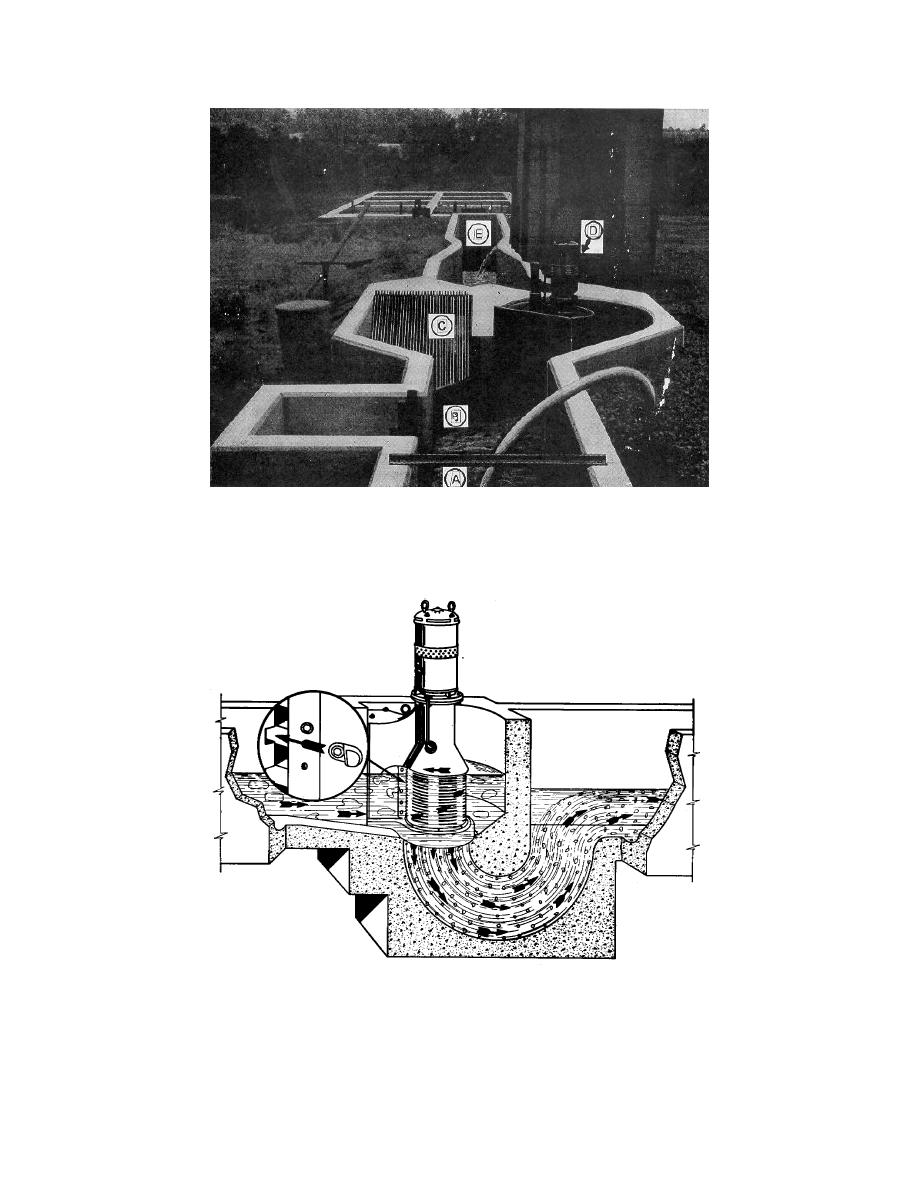

Figure 2-2.
Comminutor and bar screen. (A) Wastewater from collection
system, (B) weir, (C) bar screen, (D) comminutor motor, (E)
Parshall flume.
Figure 2-3.
Sectional drawing of comminutor. (Note schematic difference in
size of solids before and after shredding.)
MD0161
2-5
